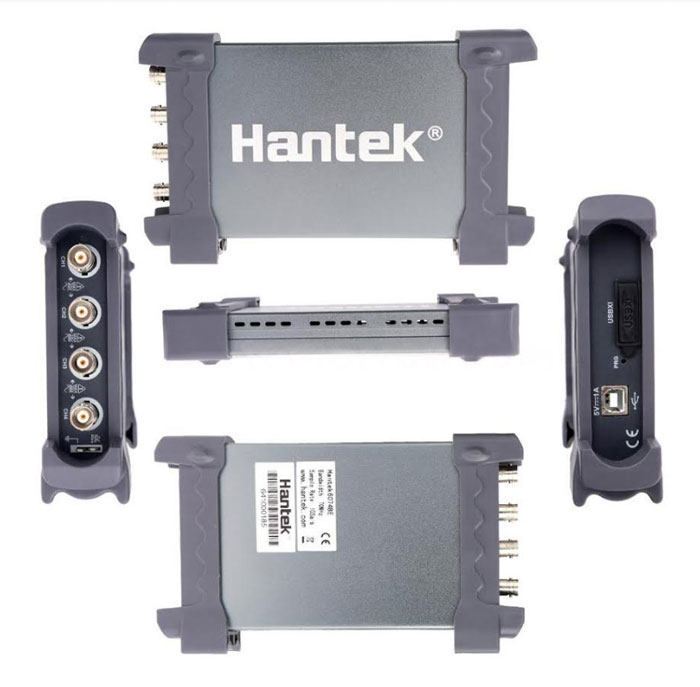

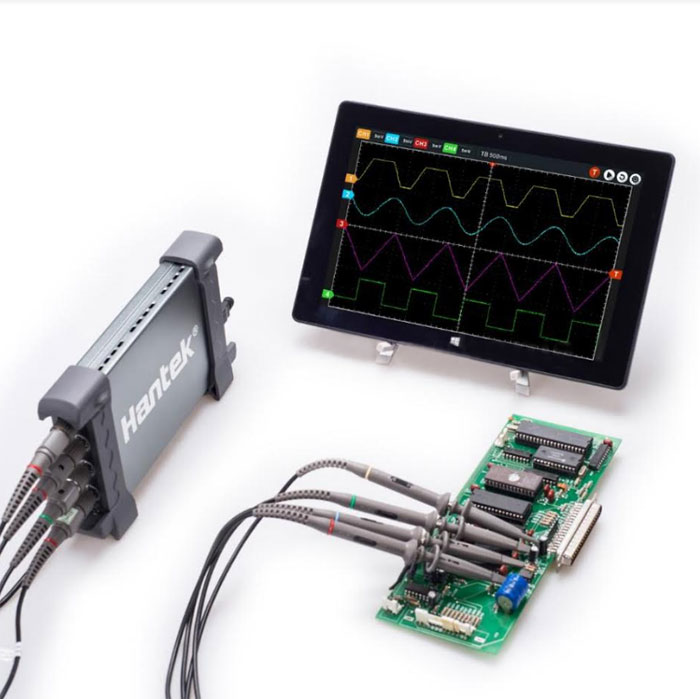

Oscilloscope USB Hantek 6074BC set-top box, 70 MHz, 4 channels, USB 2.0, Windows 7, 8, 10
Expected price:
10 404,00 UAH
from 1 pc :
—
10 404,00 UAH
from 2 pcs :
—
10 196,00 UAH
( -2,0%)
from 4 pcs :
—
9 988,00 UAH
( -4,0%)
Prices are indicated at the time of product availability and may change upon receipt
4-channel oscilloscope set-top box with USB 2.0 connection interface. Works under the operating system Windows 7, 8, 10.
Specifications:
Bandwidth - 70 MHz
Number of channels - 4
Input impedance - 1MΩ, 25pF
Input sensitivity - 2mV/div ~ 10V/div
Measurement Mode - Real Values, Peak Values, Average Values
Stylus division ratio -1: 1, 1:10, 1: 100 (with nozzle), 1: 1000 (with nozzle)
Real time sampling rate - 250MSa/s per channel
Synchronization - external, internal
Signal rise time - no more than 5 nS
Measurement recording capability
Body material - anodized aluminum
Overall dimensions: oscilloscope - 210x125x37 mm, packaging - 235x170x75 mm
Weight: oscilloscope - 0.44 kg, a set in a package - 0.92 kg
Package Contents:
Oscilloscope attachment - 1 pc.
USB-B to 2xUSB-A cable - 1 pc.
Oscilloscope probe with a divider 1: 100 and 1: 1000 - 2 pcs.
BNC cable - "crocodile" - 2 pieces
CD with software - 1 pc.
The warranty period for HANTEK oscilloscopes is 3 months to detect any factory defects.
The data presented in the product description are for reference only and may differ from those indicated by the manufacturer.
If you need additional information, or you found an error in the description, or have other questions about this product, then our manager will help you: Евгений ЗП
