Whole catalog
↠ Measuring instruments
↠ Multimeters, current clamps and accessories for them
↠ Current Clamp
Current Clamp Non-contact measurement of AC and DC currents up to 1000 Amperes (cable up to 55 mm in diameter). Multimeter functions: measurement of resistance, frequency, duty cycle, diode and continuity test.
Manufacturer:
UNI-T
NOT available.
Expected price:
4 342,00 UAH
from 1 pc :
—
4 342,00 UAH
from 2 pcs :
—
4 255,00 UAH
( -2,0%)
from 5 pcs :
—
4 212,00 UAH
( -3,0%)
Prices are indicated at the time of product availability and may change upon receipt
Characteristics:
auto range selection;
use of the root mean square value in measurements;
data storage;
hibernation;
low battery indicator;
display backlight;
the maximum diameter of the pliers is 55 mm;
updating the data on the display 3 times per second;
compactness and convenient design;
Compliance with electrical safety standards IEC 61010 CAT II 600 V, CAT III 300 V.

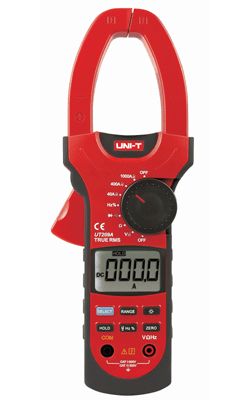

UT209A
Digital Clamp Multimeters
Enlarge
Registered Design No.: 0411493.0
SPECIFICATIONS
Basic Functions
Range
Best Accuracy
DC Voltage
400mV/4V/40V/400V/1000V
±(0.8%+1)
AC Voltage
400mV/4V/40V/400V/750V
±(1.2%+3)
DC Current
40A/400A/1000A
±(1.5%+5)
AC Current
40A/400A/1000A
±(2%+2)
Resistance
400 W /4k W /40k W /400k W /4M W /40M W
±(1%+2)
Temperature (°C)
-40°C ~ 1000°C
Capacitance
4nF/40nF/400nF/4µF/40µF/100µF
Frequency
10Hz/100Hz/1kHz/10kHz/1MHz/10MHz
±(0.1%+3)
Duty Cycle
0.1% ~ 99,9%
√
Special Functions
Auto Ranging
√
Diode
√
Continuity Buzzer
√
True RMS
AC
√
Frequency Measurement by Conductor
√
Data Hold
√
Sleep Mode
√
Display Backlight
√
Low Battery Display
√
Input Impedance for
≥10M W
√
Max. Conductor Diameter
55mm
√
Max. Display
4000
√
GENERAL CHARACTERISTICS
Power
9V Alkaline Battery
LCD Size
47 x 30mm
Product Colour
Red and Grey
Product Net Weight
533g
Product Size
286 x 105 x 45mm
Standard Accessories
Test Lead, Battery,English Manual, Tool Box
The data presented in the product description are for reference only and may differ from those indicated by the manufacturer.
